General

Analysis

An analysis describes a single CodeSonar analysis run.

Analyses are securable resources. The various ANALYSIS_* permissions control access to analysis information, including information about warnings issued by an analysis. For a given role R and analysis A, role R may have one or more of these permissions directly assigned to A, resource-inherited from the project P that was analyzed by A, resource-inherited from a project tree that contains P, or any combination of these.

There are several kinds of information associated with an analysis.

The build and analysis pass through a number of states. These can be grouped into three distinct intervals.

block diagram showing flow between the three distinct intervals: build to analyze to daemon mode

build (B) Observe the execution of the regular software build (C, C++) or another specified command (other languages) to collect necessary information about the project; store the collected information in the project build directory.
analyze (A) Construct and analyze the CodeSonar project, store the collected information in the project analysis directory.
The analyze interval can be subdivided into parse mode and analysis mode.
parse mode Behavior in this first part of the analyze interval depends on the languages of the individual compilation units
  • C and C++: CodeSonar parses the code in the compilation units identified during the build interval, adding corresponding internal representation (IR) information to the CodeSonar project. We refer to this as deep parsing.
  • Other languages: Deep parsing takes place in the build interval, so there are no operations during parse mode.
The analysis states corresponding to parse mode are {Removing Obsoleted Translation Units, Parsing Translation Units}.
analysis mode The remainder of the analyze interval, in which CodeSonar builds a deep semantic representation of the analyzed code and then analyzes it in multiple traversals.
The parse mode/analysis mode distinction is primarily relevant to parallel/distributed analysis.
daemon mode (D) Service requests from the hub for information stored in the project analysis directory (such as source file listings).

The analyze (A) and daemon mode (D) intervals can be local-managed or remote-managed. The build interval always runs locally.

Both local-managed and remote-managed analyses can be parallel and distributed.

Local and Remote Analysis Management

Both analyze (A) and daemon mode (D) intervals can be local-managed or remote-managed. The build (B) interval always runs locally.

local-managed All intervals are managed by a launch daemon running with the same system user, hub user, machine, and installation that were used for the build interval. In particular, the machine is the one on which the CodeSonar build/analysis was invoked.
By default, both the analyze interval and the daemon mode interval are local-managed.
remote-managed The analyze/daemon mode interval is managed by a launch daemon specified when the build/analysis is invoked. This can be any launch daemon connected to the hub from any machine. If the analyze interval is remote-managed then the daemon mode interval must also be remote-managed, but can use a different launch daemon to the one used in the analyze interval.

Note that analysis management (local vs remote) is distinct from analysis master requesting policy (also divided into "local" and "remote" cases).

local- and remote-managed analysis intervals. Description follows in text.

analyze: local-managed This is the default.
  • The CodeSonar build interval runs locally to collect all necessary information about the project and store it in the project build directory.
  • During the CodeSonar analyze interval:
    • The analysis launch daemon runs with the same system user, hub user, machine, and installation that were used for the build interval.
    • The project analysis directory is the same as the project build directory.
  • When the analyze interval is finished, CodeSonar transitions to daemon mode: see daemon mode management.

Offline analyses are always local-managed.
analyze: remote-managed If the analysis command specifies a remote launch daemon analysis-launchd, the analyze interval is managed remotely.
  • The CodeSonar build interval runs locally to collect all necessary information about the project and store it in the project build directory.
  • At the beginning of the CodeSonar analyze interval, data and control are transferred to the analysis launch daemon specified by analysis-launchd:
    1. CodeSonar uploads the entire project build directory to the hub.
    2. The hub sends the project build directory to the remote analysis launch daemon for analysis.
    3. The remote analysis launch daemon stores a copy of the project build directory under its Home Directory: this copy is the project analysis directory.
    4. The analysis launch daemon initiates the CodeSonar analysis, operating on the project analysis directory.
  • When the analyze interval is finished, CodeSonar transitions to daemon mode: see daemon mode management.
To specify a remote analysis launch daemon analysis-launchd...
...on the command line Include -remote analysis-launchd in your codesonar analyze command.
...in the Windows Build Wizard Set Analysis to SaaS or Custom on screen 1.
  • SaaS instructs the hub to select analysis-launchd from the saas launchd group. This is the recommended setting for CodeSonar SaaS analyses.
  • Custom allows you to specify your own value for analysis-launchd.
...in a configuration file Specify the following in a suitable configuration file.
REMOTE_ANALYSIS_LAUNCHD = analysis-launchd
Specifying a remote analysis launch daemon on the command line or via the Windows build wizard takes precedence over this setting.
daemon mode management When the analysis transitions to daemon mode, behavior depends on whether or not the build/analysis specifies a separate remote launch daemon archive-launchd to be used in daemon mode.
  • Remote archive-launchd specified: analysis data and control are transferred to archive-launchd to service requests from the hub.
  • Not specified: analysis launch daemon and analysis directory remain unchanged.
    • If the analyze interval was local-managed, the daemon mode interval is local-managed.
    • If the analysis interval was remote-managed, the daemon mode interval is remote-managed by the same analysis launch daemon.
To specify a separate remote launch daemon archive-launchd to be used in daemon mode...
...on the command line Include -remote-archive archive-launchd in your codesonar analyze command.
For offline analyses, include -remote-archive archive-launchd in your codesonar submit-results command.
...in a configuration file Specify the following in a suitable configuration file.
REMOTE_ANALYSIS_LAUNCHD = archive-launchd
Specifying a remote daemon mode launch daemon on the command line or via the Windows build wizard takes precedence over this setting.
(There is no current Windows Build Wizard equivalent. This may change in a future release.)

For a step-by-step example, see Task: Set Up and Perform a Remote-Managed Analysis.

Properties

This section describes each of the properties of an analysis. The full list of properties is (in alphabetical order):

  Name
( Search Language Field Name, if any)		 Description
  Analysis
( analysis)		 A short descriptive name for the analysis, which can be edited by the user. When the analysis is started, CodeSonar will determine a name as follows.
  • If -name " <NAME A>" is specified in the build command, the analysis name will be <NAME A>.
  • Otherwise, if the configuration file contains a rule like
      ANALYSIS_NAME = <NAME B>
    the analysis name will be <NAME B>.
  • Otherwise, CodeSonar will automatically generate a name of the form
    proj_name analysis num
    indicating that this is the numth analysis of project proj_name for the hub (note that the sequence number num takes into account all previous analyses of proj_name, whether or not they have subsequently been deleted).
Analysis ID
( aid)		 A unique numeric identifier for the analysis.
Analysis Description
( adesc)		 A user-specified string containing a description for the analysis.
Protected?
( protected)		 A user controlled setting: "true" if the analysis is protected from auto-deletion, "false" otherwise. By default, set to "false".
Modified The date and time at which the analysis was last modified. This will be the most recent of:
  • The time the analysis finished.
  • The last user modification to the analysis Description.
  • The last user modification to a warning issued by the analysis.
Started
( started)		 The date and time at which the analysis started.
LinkingStarted
 The date and time at which the analysis reached the Linking analysis state.
Finished
( finished)		 The date and time at which the analysis finished.
Analysis State The current state of the analysis process. A table of the possible values and their meanings is given below.
Analysis Project The project analyzed by the analysis.
The GUI and analysis search language provide direct access to several Analysis Project properties.
(pid) Project ID
(project) Name
(pdesc) Project Description
(ptree_path) Project Path
Analysis Launch Daemon The launch daemon that manages hub communications for the CodeSonar analyze interval. For distributed analyses, this is the launch daemon associated with the master process.
  • The initial Analysis Launch Daemon for an analysis depends on whether the analysis is local-managed or remote-managed.
    • Offline build/analysis commands do not communicate with the hub, and are not associated with an analysis launch daemon.
    • For local-managed online analyses, the analysis launch daemon Machine, System User, and Installation are those used to run the analysis command, and Hub User is the hub user who authorized the analysis command. This means that the analysis launch daemon Machine is the same as the analysis Build Machine.

      Special case: for foreground analyses, hub communication in the analyze interval is managed directly by the analysis process rather than by the analysis launch daemon. An analysis launch daemon is only required if you subsequently wish to use the web GUI to view or browse code from the analysis: you may need to manually start one at that time.

    • For remote-managed online analyses, the Analysis Launch Daemon is the remote launch daemon specified with -remote.

      The specified analysis launch daemon is used for the full analyze interval.

  • When the analysis transitions to daemon mode, there are two possibilities.
  • If the analysis is subsequently relocated, the analysis launch daemon is set to the launch daemon associated with the relocation command, which may differ in one or more respects.

The GUI and analysis search language provide direct access to several Analysis Launch Daemon properties.

(address)
 Address
- Hub User
(install)
 Installation
(machine) Machine
(user) System User
- Protocol Version
Build Machine The machine on which the CodeSonar project was built.
  • For command line builds, this is the machine on which the codesonar build or codesonar analyze command was executed.
  • For builds using the Windows Build Wizard, this is the machine on which the Windows Build Wizard was invoked.
Most Recent?
( mostrecent)		 "True" if this is the analysis of Analysis Project with the most recent Started timestamp, "false" otherwise.
Dry Run?
( dryrun)		 "True" if the analysis was a dry run, "false" otherwise.

A dry run generates obtain line count and parse error information for a project without running the CodeSonar analysis (and thus without consuming licensed lines). The results of a dry run are presented in an Analysis page.

To perform a dry run, set DRY_RUN=Yes in the project configuration file and then run the build/analysis.
Logs Present? "False" if the analysis logs have been deleted from the hub, "true" otherwise.
Analysis Directory
( prjfiles)		 The project analysis directory is the location where CodeSonar stores the internal representation (IR) and other information for a CodeSonar project once it has been finalized. The CodeSonar analysis operates on the files in this directory.
  • The directory basename has the form pfilesname.prj_files/.

The relationship between the Build Directory and the Analysis Directory depends on whether the analyze interval is local-managed or remote-managed, as does the analysis directory path.

local-managed analysis
remote-managed analysis

When the analysis transitions to daemon mode, there are two possibilities.

Once the analysis has transitioned to daemon mode, you can relocate the Analysis Directory at any time by manually copying it (along with the sibling .prj file) to a new location, then using the codesonar relocate command to inform the hub of the move.

The GUI and analysis search language provide direct access to several Analysis Directory properties.

(prjfiles) .prj_files Location The absolute pathname of the project analysis directory.
- .prj_files Size The total disk space used by the project analysis directory.
- .prj_files Exists A boolean:
Build Directory The project build directory is the location where CodeSonar places all internal representation (IR) information and other files accumulated as it builds the CodeSonar project that will subsequently be analyzed.
Parent Analysis ID If the analysis is incremental, the Analysis ID of the parent analysis.
Warning Count
( warningcount)		 The number of warnings issued.
File Count
( filecount)		 The number of files analyzed.
Current Processes If the analysis is running in parallel mode with a remote-requesting master, the master periodically reports information about its currently-attached slaves to the hub as a set of pairs
{ ( D, n) }
where The hub uses this information to update its analysis cloud register.
User-Assigned Properties
Zero or more arbitrary (key,value) pairs associated with the analysis by a user.
  • Use the -property option to specify user properties in the build/analysis command.
  • Once the analysis is complete, you can view and modify (add, delete, edit) its user-assigned properties from the Properties section of the Analysis page.
  • The set of all property keys on the hub is visible to all users, but the set of property keys and values for a specific analysis is only visible to users with ANALYSIS_READ permission for that analysis.
  • The analysis search language and project search language support searching user-assigned property values by key.
Analysis-Granularity Metrics
The CodeSonar analysis computes analysis-granularity metrics, and stores them with other analysis information on the hub. Note: if the analysis is still in progress, values of metrics will change as they are computed. Once the analysis reaches the Analyzing state, computation has finished and the final values are displayed.

Build/Analysis Traversals

The CodeSonar build/analysis traverses a program's internal representation in five phases.

We use the term analysis traversals to refer collectively to the serial depth-first phase, parallel depth-first phase, pointer analysis phase, and bottom up phase. (The drop traversal is considered to be part of building the project, rather than analyzing it.)

Drop Phase

When CodeSonar runs in incremental mode, there is a drop phase before the analysis traversals begin. The drop traversal visits IR elements that existed in the previous analysis of the project but will not exist in the current analysis. During this phase, CodeSonar...

Serial Depth-First Analysis Phase

The first analysis traversal is depth-first over the entire program structure. We call this the serial depth-first phase because it visits each compilation unit in turn, in contrast to the parallel depth-first phase that follows.

diagram: compilation units visited in series in serial depth-first traversal

Portions of the analysis that reason heavily about whole-program properties are performed in this phase.

During this phase, CodeSonar...

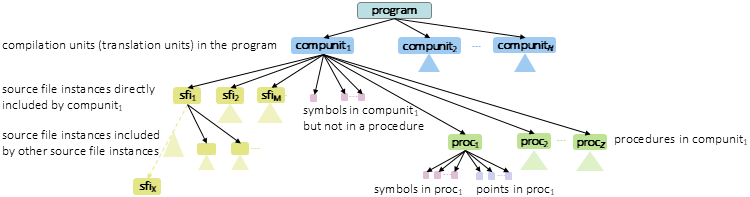

diagram: program include graph

Within siblings in this graph, the traversal order is as follows.

Parallel Depth-First Analysis Phase

The second analysis traversal is depth-first over each compilation unit, but different compilation units may be processed in parallel (when enabled).

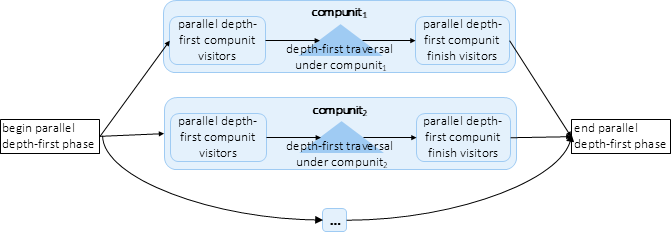

diagram: compilation units visited in parallel in parallel depth-first traversal

This parallel depth-first traversal is faster than the serial depth-first traversal in the previous phase, but does not straightfowardly support reasoning about whole-program properties. It is most suitable for analysis tasks that require reasoning about properties whose scope is a single compilation unit or smaller (e.g. a point or procedure).

During this phase, CodeSonar...

diagram: program include graph.

Within siblings in this graph, the traversal order is as follows.

Pointer Analysis Phase

If pointer analysis is enabled (with TAINT_HIGHLIGHTING=Yes, FUNCTION_POINTER_RESOLUTION=Yes, or both), CodeSonar will perform a series of pointer analysis "passes". Each pass consists of bottom-up traversal over the program call graph followed by a top-down traversal over the program call graph, and refines the set of points-to facts known to the analysis. The number of passes is bounded by the value of MAX_POINTER_ANALYSIS_PASSES.

diagram: program call graph.

Bottom-Up Analysis Phase

The final traversal is bottom-up over the program call graph (which may have been refined during the pointer analysis phase): procedures that are more deeply nested in the call graph are traversed before procedures that are less deeply nested.

During this phase, CodeSonar...

diagram: bottom-up traversal over program call graph.

Analysis States

The possible Analysis State values are shown, in order of appearance, in the following table. Some states describe analysis phases that are very brief, so you are unlikely to see them in the GUI unless something is wrong with the analysis.

As described above, the states can be grouped into three distinct intervals:

build (B) Parallelism will mirror the parallelism in the command that CodeSonar is observing.
(For C and C++ code, this means that it will mirror the parallelism in your regular software build).
analyze (A) The degree of parallelism depends on the settings of PARSE_SLAVES and ANALYSIS_SLAVES:
  • PARSE_SLAVES controls the degree of parallelism when the analysis is in parse mode.
  • ANALYSIS_SLAVES controls the degree of parallelism for the remainder of the analyze interval (analysis mode).
    Note that some stages in the analyze interval are always performed serially even when parallelism is enabled: see the Parallelizable? table column for details.
daemon mode (D) The degree of parallelism depends on the setting of DAEMON_SLAVES.

States marked with * only occur in incremental analyses.

State Interval Parallelizable? Notes
Initialized - - The CodeSonar build/analysis has been invoked, but the regular software build command has not yet been executed.
Building B YES Command line build: the regular build is still running.
Windows build wizard: the wizard is still recording, and will remain so until the user clicks Finalize.
Building over; - - There are two cases:
  • Building over; Awaiting analysis or more building
    The analysis hasn't started yet, but all previously specified building has been completed.
  • Building over; Native build failed
    The software build command that CodeSonar is observing has exited with failure. This status is only possible with command-line builds: the Windows Build Wizard has no access to the exit codes of build processes and so will remain in state "Building over; Awaiting analysis or more building" if the observed build command fails.
Stalled - - A problem has occurred: look at the Analysis Log.
Linking A no Recorded translations are being parsed and parsing results are being linked into the CodeSonar project.
Removing Obsolete Translation Units * A YES Removing obsolete translation units.
Parsing Translation Units A YES The parse mode phase.
Getting Models A no CodeSonar is loading all applicable library models.
Comparing Compilations * A no The drop traversal phase: CodeSonar is determining which parts of the parent project can be retained, and which must be dropped or replaced.
Resolving Names A no -
Indexing Source Files A no -
Updating Old Variables * A no -
Computing Call Graph A no -
Updating Variable Maps * A no -
Building Procedures A no -
Updating Variables A no -
Building Undefined Procedures A no -
Updating Program Points A no -
Compacting Program Points A no -
Demangling Names A no -
Updating Callers A no -
Finalizing Linkage A no -
Dropping Compilations * A no -
Indexing Cross References A no -
Acquiring License Key - - CodeSonar is waiting for an available seat. If your analysis remains in this state for an extended period of time, you may be exceeding the concurrent analyses limit defined in your license.
Pruning Summaries * A no -
Garbage Collecting * A no -
Enumerating Languages A no -
Adjusting Call Graph A no -
Building Procedure List A no -
Removing Old Source Files * A no -
Computing Reachable Procedures A no -
Analyzing Translation Units Serially A no Corresponds to serial depth-first analysis phase.
Topologically Sorting Procedures A no -
Analyzing Translation Units A YES Corresponds to parallel depth-first analysis phase.
Analyzing Pointers A YES -
Computing Visualization Data A no -
Analyzing A YES Corresponds to bottom-up traversal.
Refining Warnings A YES CodeSonar is applying decision procedure refinement to warning paths. This aims to filter out some warnings that cannot occur in practice.
Finished D YES The analysis has finished successfully. The analysis process is either transitioning to daemon mode, running in daemon mode after successful transition, or ended.

Accessing Analysis Information

Analysis information is available in the CodeSonar GUI as follows.

Analysis Full information about a single analysis, including warnings issued, files analyzed, and procedures encountered.
Analysis Cloud Active Jobs Provides information about distributed analysis processes that are currently cloud-associated with launch daemons in the hub's analysis cloud register, broken down according to the analyses that the processes are attached to.
Analysis Role-Permissions View and modify role-permissions for a single analysis.
Analysis Search Results A table with one line for each analysis that matches the search conditions.
Metric Report Create Create a metric report for an analysis.
Project A table with one row for each analysis in a single project.

Removing an Analysis

The CodeSonar GUI provides several mechanisms for manually deleting one or more analyses.

GUI Page Type Analysis Deletion Functionality
Analysis
Project
Home,
Project Tree

In addition, the analysis auto-deletion functionality allows users to specify hub-wide or project-wide criteria for automatically deleting old analyses or analysis logs (including functionality for protecting individual analyses from deletion).

For a step-by-step example, see Task: Remove an Analysis.



To report problems with this documentation, please visit https://support.codesecure.com/.
