Offline Build/Analysis

• Specifying Offline Build/Analysis
• Submitting Offline Data to a Hub
• Copying or Moving
• Typical Operation Sequences
• Related Links

By default, the CodeSonar build/analysis is performed online: information is continually submitted to the hub as the CodeSonar project is constructed and analyzed.

It is also possible to perform the operations in the build interval and analyze interval offline. Offline build and analysis do not interact with a hub. The information that would be continually submitted to the hub in an online build/analysis is instead stored in the build directory/analysis directory so that it can be submitted later with codesonar submit-results. You will still require a hub to access your analysis results.

You can instruct CodeSonar to work offline for the build interval, analyze interval, or both.

The situations in which offline build and analysis can be useful include the following.

• Network outages prevent the build/analysis from connecting to the hub.
• Some of the tools required by the underlying software build are only available on a machine that can't access the hub, or a machine whose load must be reduced as much as possible.
• You want to the submit same analysis to multiple hubs, or to multiple projects on a single hub.

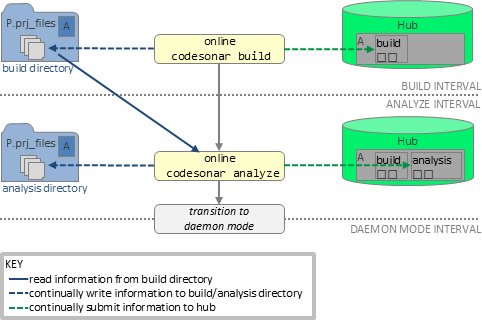

Online (standard) CodeSonar build/analysis This is the default behavior for CodeSonar build and analysis. This manual refers to online build and analysis only when it is necessary to distinguish it from the offline variant.

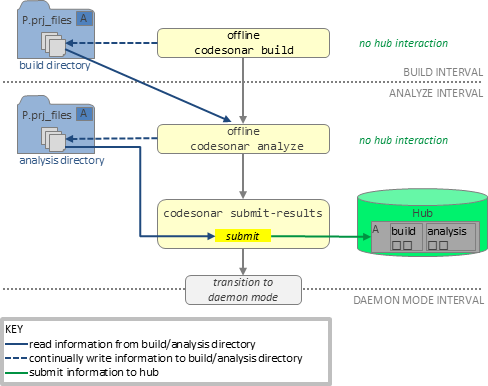

Offline CodeSonar build/analysis

Offline status interacts with other analysis types as follows.

• Incrementality: offline analyses can be either incremental or nonincremental.
• Distributed analysis: offline analyses are always local-managed.
• Parallel analysis: offline analyses are always local-requesting.

Specifying Offline Build/Analysis

There are two ways to specify offline build/analysis.

• Specify -offline in any codesonar build or codesonar analyze command to execute that command offline.
• Set OFFLINE=Yes in a suitable configuration file.
  Both the build interval and the analyze interval will be performed offline unless a conflicting command line option is specified, in which case the command line option takes precedence and the command is performed online.

Offline analysis is not compatible with command line options or configuration file settings that involve hub interaction. Conflicting settings are resolved as follows.

• The -offline command line option takes precedence over OFFLINE=No.
  When both are specified, the command will proceed in offline mode
• Offline analyses are always local-managed.
  • It does not make sense to specify both -offline and -remote in the same command line.
    If both are specified, CodeSonar will exit with an error.
  • The -offline command line option takes precedence over the REMOTE_ANALYSIS_LAUNCHD configuration parameter.
    When both are specified, CodeSonar will output a warning message and the command will proceed in offline mode.
  • It does not make sense to specify both OFFLINE=Yes and REMOTE_ANALYSIS_LAUNCHD in the configuration files for a given build/analysis.
    If both are specified, CodeSonar will exit with an error unless the codesonar build or codesonar analyze command specifies -offline or -remote (but not both), in which case the command line option takes precedence.
• Offline distributed analyses are always local-requesting.
  • The -offline command line option takes precedence over the REQUEST_REMOTE_ANALYSIS_SLAVES=Yes and REQUEST_REMOTE_PARSE_SLAVES=Yes configuration settings.
    CodeSonar will output a warning message if it encounters -offline in combination with REQUEST_REMOTE_ANALYSIS_SLAVES=Yes, REQUEST_REMOTE_PARSE_SLAVES=Yes, or both.
  • It does not make sense to specify both OFFLINE=Yes and REQUEST_REMOTE_PARSE_SLAVES=Yes, or both OFFLINE=Yes and REQUEST_REMOTE_ANALYSIS_SLAVES=Yes in the configuration files for a given build/analysis.
    If either of these combinations is specified, the build/analysis will fail with an error unless -offline is also specified, in which case -offline will take precedence.

Submitting Offline Data to a Hub: codesonar submit-results

When a CodeSonar build or analysis command is executed offline, all collected information is stored in the build directory or analysis directory (whichever is applicable). This includes:

• Information that would have been submitted to the hub if the command had been performed online: we refer to this as offline information.
• Information that is always stored in the analysis directory, regardless of whether analysis was online or offline. This information includes source file listings and procedure-granularity metrics.

Offline information must be submitted to the CodeSonar hub with the codesonar submit-results command in order to be used. Specifically, codesonar submit-results must be invoked:

• After offline analysis.
  • Until codesonar submit-results is invoked, analysis results are not available on the hub and the analysis cannot transition to daemon mode.
  • The build directory and analysis directory cannot be used for a new analysis while they contain accumulated offline information from a previous analysis.
• Between an offline build/analysis command and any subsequent online build/analysis command using the same build directory/analysis directory.
  • If you attempt to perform online build/analysis with a directory that contains unsubmitted offline information, the command will fail.

For full details, see codesonar submit-results: Submit Offline Build/Analysis Information.

The examples below illustrate some typical operation sequences for offline/build analysis with codesonar submit-results.

Copying or Moving the Build/Analysis Directory

When the build interval is performed offline, you can copy or move the build directory before performing the analysis.
This can be particularly useful when the CodeSonar-facing build requires tools that are not available on machines with access to the hub. For example:

• For C and C++ components, the CodeSonar-facing build requires the normal software build tools for those components (including any compilers).
• When the CodeSonar-facing build involves a tier 3 subcommand (Go, Kotlin, Python, Rust, JavaScript, TypeScript components), the corresponding third party analyzer must be available.
  For example, the CodeSonar-facing build for Go components invokes codesonar go_scan.py, which requires the Staticcheck analyzer.

Similarly, when the analyze interval is performed offline you can copy or move the analysis directory before submitting results to the hub with codesonar submit-results.

Examples 4, 5, 6, and 7, below, illustrate some typical operation sequences for moving and copying the build directory and analysis directory.

Important: There are several important requirements when copying or moving a build directory or analysis directory containing offline information.

• Do not change the directory basename.
• Do not invoke codesonar submit-results before copying. If you do:
  • All accumulated offline information will be submitted to the hub and then deleted from the directory, so there will be no offline information to copy.
  • The directory will be explicitly associated with a specific CodeSonar project on a specific hub, and any copies you make will also be associated with that project.

Typical Operation Sequences

The following operation sequences illustrate typical use cases for offline build/analysis. For more examples, see codesonar submit-results: Examples.

• Example 1: Perform build interval and analyze interval offline, then submit results to the hub.
• Example 2: Perform build interval offline, then submit results to the hub, then perform analyze interval online.
• Example 3: Perform build interval online, then perform analyze interval offline, then submit results.
• Example 4: Perform build interval offline, copy build directory to a new location, perform analyze interval offline, then submit results.
• Example 5: Perform build interval offline on machineX, copy build directory to machineY, perform analyze interval offline on machineY, then submit results.
• Example 6: Perform the build interval offline on machineX, make multiple copies of the build directory, then analyze and submit results for each copy separately.
• Example 7: Perform the build directory offline on machineX, move to machineY for the analyze interval, then move to machineZ to submit the results.

For all of these examples, the CodeSonar-facing build is involved by make and the hub location is hubmachine:7340 unless otherwise noted.

Example 1: Perform build interval and analyze interval offline, then submit results to the hub.

Specify the -offline option with both codesonar build and codesonar analyze, then invoke codesonar submit-results.

The execution of codesonar submit-results causes the information accumulated by the offline codesonar build and offline codesonar analyze to be submitted from the hub.
The hub has no record of the analysis until codesonar submit-results is executed.

We could also use the following sequence, with the same outcome.

Example 2: Perform build interval offline, then submit results to the hub, then perform analyze interval online.

Specify the -offline option with codesonar build, then invoke codesonar submit-results, then perform codesonar analyze online.

This approach is useful if a network outage occurs when you are building the CodeSonar project, but the outage is resolved by the time you are ready to analyze.

Example 3: Perform build interval online, then perform analyze interval offline, then submit results.

Perform codesonar build online, then invoke codesonar submit-results, then specify the -offline option with codesonar analyze.

This approach is useful if you experience a network outage partway through the build and analysis process.

Example 4: Perform build interval offline, copy build directory to a new location, perform analyze interval offline, then submit results.

For example, you might want to associate the accumulated build information with multiple CodeSonar projects on the same machine.

Important: Do not change the basename of the directory. (In this example it is myproj.prj_files throughout.)

Example 5: Perform build interval offline on machineX, copy build directory to machineY, perform analyze interval offline on machineY, then submit results.

For example, suppose machineX has a specialized C/C++ compiler that is used in the native software build, but is not installed on other machines. Moving to a different machine for the analyze interval allows us to reduce the overall load on machineX while still using it in the build interval.

1. Perform offline build on machineX.
   For this example, the system user is alex and they are storing their CodeSonar build directory under /alexfiles/Projects/.
   cd /alexfiles/Projects
   codesonar build myproj -offline make
2. Switch to machineY for the remaining steps.
3. Copy the build directory from machineX to a suitable location on machineY
   You can use whatever system tool you usually use for copying between different machines. This example uses scp.

   Important: Do not change the basename of the directory. (In this example it is myproj.prj_files throughout.)


   scp -r alex@machineX:/alexfiles/Projects/myproj.prj_files /new/location/
4. Perform offline analysis and submit the results.

   cd /new/location
   codesonar analyze myproj -offline
   codesonar submit-results myproj hubmachine:7340

Example 6: Perform the build interval offline on machineX, make multiple copies of the build directory, then analyze and submit results for each copy separately.

If multiple projects share a compilation unit, you may decide that it is most convenient to perform a single offline codesonar build to observe the corresponding compilation, then make multiple copies of the resulting build directory so that there is one for each CodeSonar project you want to build and analyze.

Important:

• Do not change the basename of the build/analysis directory. (In this example it is myproj.prj_files throughout.)
• Do not invoke codesonar submit-results before copying the build directory.

For this example, the system user is alex.

1. Perform the offline build on machineX.

   codesonar build myproj -offline make
2. Copy the build directory as many times as you like.
   For example, we could remain in the same machineX working directory that we used in step 1, and make three copies.

   scp -r myproj.prj_files alex@machineY:/alexfiles/ProjectA/
   scp -r myproj.prj_files alex@machineY:/alexfiles/ProjectB/
   scp -r myproj.prj_files alex@machineZ:/alexfiles/ProjectC/
3. For each copy, proceed as required for that project.
   For example:
   • For the ProjectA copy, do no further compilations. Analyze offline, then submit the results to project /ProjectA on the hub at hubmachine:7340.
     1. Switch to machineY.
     2. Change to the ProjectA directory (which contains a copy of myproj.prj_files), and invoke offline codesonar analyze.
        cd /alexfiles/ProjectA/
        codesonar analyze myproj -offline
     3. Invoke codesonar submit-results. to submit the results to the hub at hubmachine:7340, specifying -project /ProjectA.
        codesonar submit-results myproj hubmachine:7340 -project /ProjectA
   • For the ProjectB copy, perform some more offline codesonar build commands to observe additional compilations, then submit the accumulated offline build information to project /ProjectB on the hub at hubmachine:7340, then perform online codesonar analyze.
     1. Switch to machineY.
     2. Change to the ProjectB directory (which contains a copy of myproj.prj_files).
        cd /alexfiles/ProjectB/
     3. Observe the additional compilations relevant to ProjectB.
        codesonar build myproj -offline gcc -c file1.c
        codesonar build myproj -offline gcc -c file2.c
     4. Invoke codesonar submit-results to submit the accumulated offline build information to the hub at hubmachine:7340, specifying -project /ProjectB.
        codesonar submit-results myproj hubmachine:7340 -project /ProjectB
     5. Perform online codesonar analyze, specifying the same hub and project.
        codesonar analyze myproj hubmachine:7340 -project /ProjectB
   • For the ProjectC copy, perform some more offline codesonar build commands, then analyze offline, then submit results to project /ProjectC on a different hub: otherhub:7341.
     1. Switch to machineZ.
     2. Change to the ProjectC directory (which contains a copy of myproj.prj_files).
        cd /alexfiles/ProjectC/
     3. Use offline codesonar build to observe further CodeSonar-facing build commands specific to ProjectC.
        In this example, the commands are invoked by make -f Makefile.ProjC.
        codesonar build myproj -offline make -f Makefile.ProjC
     4. Perform offline codesonar analyze.
        codesonar analyze myproj -offline
     5. Invoke codesonar submit-results to submit the accumulated offline build information to the hub at otherhub:7341, specifying -project /ProjectC.
        codesonar submit-results myproj otherhub:7341 -project /ProjectC

Example 7: Perform the build directory offline on machineX, move to machineY for the analyze interval, then move to machineZ to submit the results.

1. Perform offline build on machineX.
   For this example, the system user is alex and they are storing their CodeSonar build directory under /alexfiles/Projects/.
   cd /alexfiles/Projects
   codesonar build myproj -offline make
2. Switch to machineY.
3. Copy the build directory from machineX to a suitable location on machineY
   You can use whatever system tool you usually use for copying between different machines. This example uses scp.

   Important: Do not change the basename of the directory. (In this example it is myproj.prj_files throughout.)


   scp -r alex@machineX:/alexfiles/Projects/myproj.prj_files /machY/location/
4. Perform offline analysis.

   cd /machY/location
   codesonar analyze myproj -offline
5. Switch to machineZ.
6. Copy the analysis directory from machineY to a suitable location on machineZ.

   Important: Do not change the basename of the directory.


   scp -r alex@machineY:/machX/location/myproj.prj_files /machZ/final_location/
7. Submit the results.

   cd /machZ/final_location
   codesonar submit-results myproj hubmachine:7340
