Build/Analysis Commands

CodeSonar provides the build and analyze commands so that you can base a CodeSonar build of your project on whichever build system you are accustomed to using.

This method can be used for building:

on Linux systems,
from a standard Windows command prompt, and
on a Cygwin command line from within Windows.

General Form
Build/Analysis Methods
Behavior

General Form

The general form of the command line to build and analyze a CodeSonar project is:

codesonar analyze /path/to/pfiles-name [-project [/[ancestors/]]proj-name] [<other_flags>] [command]

To accumulate components toward a CodeSonar project without finalizing or analyzing it, use:

codesonar build /path/to/pfiles-name [-project [/[ancestors/]]proj-name] [<other_flags>] command

where:

/path/to/

is the path to the project directory, where the project files will be stored. If no path is specified, project files will be stored in the working directory.

pfiles-name

is used to construct file names for the project files generated by CodeSonar.

proj-name

is the CodeSonar project name. If -project is not specified, the project name defaults to pfiles-name.

[<other_flags>]

are any other optional CodeSonar build flags used.

command

is the command line identifying the software on which the project will be based. This varies depending on the language of the software to be analyzed. See the language-specific project build documentation for full details.

For C and C++ projects, command is the command line you would usually use to build the project. For example:
- make
- make foo
- gcc -o foo foo.c
See also: CodeSonar and the Clang Static Analyzer.
For Java, command invokes cs-java-scan. For example:
- cs-java-scan -include-artifacts NewClass.jar -include-sources NewClass.java
  Builds a project based on NewClass.jar where the corresponding source file is NewClass.java and both files are located in the working directory.
- make
  where the Makefile might be, for example,
```
default: NewClass.jar
        cs-java-scan -include-artifacts NewClass.jar -include-sources NewClass.java

mydir/NewClass.jar: NewClass.class
        jar cf NewClass.jar NewClass.class

mydir/NewClass.class: NewClass.java
        javac -g NewClass.java
```
For C#, command invokes cs-dotnet-scan.
For Go, command invokes codesonar go_scan.py
For JavaScript or TypeScript, command invokes codesonar es_scan.py
For Kotlin, command invokes one or both of
- codesonar kotlin_scan.py
- cs-java-scan
For Python, command invokes codesonar python_scan.py
For Rust, command invokes codesonar rust_scan.py
To import SARIF files containing analysis results, along with any associated tier 3 source files, command invokes codesonar import_sarif.py.
To import files of other types, command invokes codesonar add_source_files.py.

analyze

Build a CodeSonar project, run the analysis and output the analysis results to a hub (from which they can be browsed using the Web GUI).

codesonar analyze /path/to/pfiles-name [-project [/[ancestors/]]proj-name] [<other_flags>] command
codesonar analyze /path/to/pfiles-name [-project [/[ancestors/]]proj-name] [<other_flags>]

[<other_flags>] = [-foreground] [-wait] [-clean] [-clean-backend] [-force-base-hub-analysis] [-name analysis-name] [-preset preset-name] [-no-default-presets] [-conf-file extra-conf-path] [-property propkey propval] [-launchd-group ldgroup] [-launchd-key ldkey] [-watch-pid pid] [-watch-all-pids] [<authflags>] [-remote analysis-launchd] [-remote-archive archive-launchd] [-srcroot basedir] [[protocol://]host: port]
[<authflags>] = [-auth authtype] [-hubuser username] [-hubpwfile pwfile] [-hubbearerfile bearerfile] [-hubcert certfile] [-hubkey privatekeyfile]

build

Accumulate different components toward a single project without analyzing the project.

codesonar build /path/to/pfiles-name [-project [/[ancestors/]]proj-name] [<other_flags>] command

[<other_flags>] = [-clean] [-clean-backend] [-force-base-hub-analysis] [-name analysis-name][-preset preset-name] [-no-default-presets] [-conf-file extra-conf-path] [-property propkey propval] [-launchd-group ldgroup] [-launchd-key ldkey] [-watch-pid pid] [-watch-all-pids] [<authflags>] [protocol://host:port]
[<authflags>] = [-auth authtype] [-hubuser username] [-hubpwfile pwfile] [-hubbearerfile bearerfile] [-hubcert certfile] [-hubkey privatekeyfile]

Behavior

The effects of codesonar build and codesonar analyze depend on multiple factors. Suppose the project is named pfiles-name.

Have any pfiles-name components already been accumulated?
Has a project associated with pfiles-name already been analyzed?
Is incrementality enabled?
Is option -clean specified?
[codesonar analyze only] Is command specified?
Does command run successfully and identify at least one software component (such as a C or C++ translation unit, or a Java class) for inclusion in the project?
(Note: options -clean-backend and -force-base-hub-analysis will also affect behavior in some cases: for clarity, the descriptions below omit effects due to these options since they have limited use cases. See the linked option documentation for details.)

Overview of project build/analysis states

The following diagram provides an overview of the possible states of a CodeSonar project, and the transitions between these states.

transition diagram (description follows in text): transitions between various states of the Project Build Directory

Project State	Description
Empty (E)	An empty project is one that has no accumulated information. To check if your project is in this state, inspect the project build directory pfiles-name.prj_files/. If the directory does not exist at all, the project is always considered to be empty. Otherwise, the project is considered to be empty if it contains zero translation units. There is only one useful operation from this state: accumulating project information (E→P).
Partially Built (P)	A partially built project is one for which information about at least one software component has been accumulated. To check if your project is in this state, inspect the contents of the project build directory pfiles-name.prj_files/. It will contain a file named 0..fe.store. It will not* contain file pfiles-name.linked There are three possible operations from this state. Clean out the accumulated information and start again from an empty project (P→E). Accumulate more information (P→P). Finalize the project and perform the analysis (P→A).
Finalized and Analyzed (A)	At the end of a successful codesonar analyze invocation, the project analysis directory contains a fully built and analyzed CodeSonar project. To check if your project is in this state, inspect the contents of the project build directory pfiles-name.prj_files/. It will contain file pfiles-name.linked There are three possible operations from this state. Clean out the accumulated information and start again from an empty project (A→E). Accumulate more information (A→P). Reanalyze the same finalized project (A→A). (For example, because you want to change a configuration file setting, or adjust the set of applied plug-ins.)

Project State

Description

Empty (E)

An empty project is one that has no accumulated information.
To check if your project is in this state, inspect the project build directory pfiles-name.prj_files/.

If the directory does not exist at all, the project is always considered to be empty.
Otherwise, the project is considered to be empty if it contains zero translation units.

There is only one useful operation from this state: accumulating project information (E→P).

Partially Built (P)

A partially built project is one for which information about at least one software component has been accumulated.
To check if your project is in this state, inspect the contents of the project build directory pfiles-name.prj_files/.

It will contain a file named 0.*.fe.store.
It will not contain file pfiles-name.linked

There are three possible operations from this state.

Clean out the accumulated information and start again from an empty project (P→E).
Accumulate more information (P→P).
Finalize the project and perform the analysis (P→A).

Finalized and Analyzed (A)

At the end of a successful codesonar analyze invocation, the project analysis directory contains a fully built and analyzed CodeSonar project.
To check if your project is in this state, inspect the contents of the project build directory pfiles-name.prj_files/.

It will contain file pfiles-name.linked

There are three possible operations from this state.

Clean out the accumulated information and start again from an empty project (A→E).
Accumulate more information (A→P).
Reanalyze the same finalized project (A→A).
(For example, because you want to change a configuration file setting, or adjust the set of applied plug-ins.)

The following sections provide detailed information about the behavior of codesonar build and codesonar analyze in each of these states.

build/analyze on an empty project (E)
build/analyze on a partially-built project (P)
build/analyze on a finalized, analyzed project (A)

build/analyze on an empty project (E)

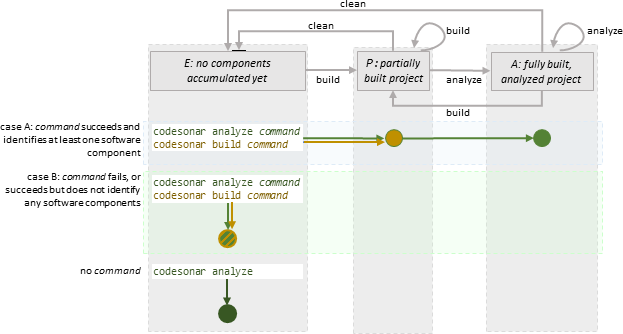

The following diagram depicts the effects of codesonar build and codesonar analyze commands invoked when a CodeSonar project is in its initial, empty state.
Command line elements that do not affect the transitions shown in the diagram are omitted for clarity. When the project is in an empty state, this includes the -clean option.

transition diagram (description follows in text): build/analyze command from empty project state

If command is successful, codesonar build command and codesonar analyze command both start by collecting information about any software components identified by command and storing this information in the project build directory (E→P). Once the build phase is finished:
- codesonar build command is done.
- codesonar analyze command continues by finalizing a CodeSonar project based on the accumulated information in the project build directory, then analyzing the project (P→A).
If command fails, or succeeds but does not identify any software components, codesonar build command and codesonar analyze command do not perform any building or analysis.
codesonar analyze (no command) does not perform any building or analysis.

build/analyze on a partially-built project (P)

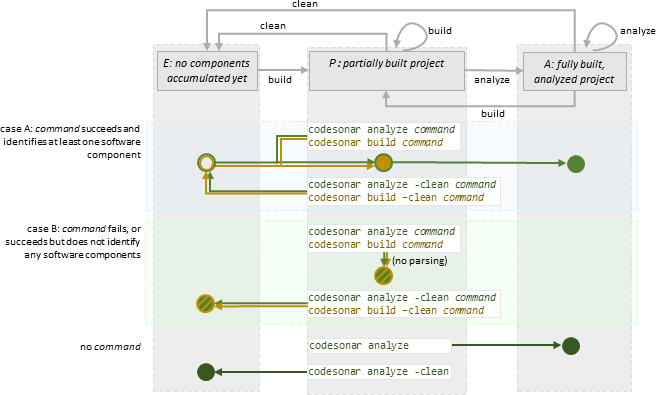

The following diagram depicts the effects of codesonar build and codesonar analyze commands invoked when a CodeSonar project is in partially built state.
Command line elements that do not affect the transitions shown in the diagram are omitted for clarity.

transition diagram (description follows in text): build/analyze command from partially-built project state

If command is successful, behavior depends on whether or not -clean is specified.
- codesonar build command and codesonar analyze command both start by collecting information about any software components identified by command and adding this information to the existing partially built project in the project build directory (P→P). Once the building phase is finished:
  - codesonar build command is done.
  - codesonar analyze command continues by finalizing a CodeSonar project based on the accumulated information in the project build directory, then analyzing the project (P→A).
- codesonar build -clean command and codesonar analyze -clean command both start by removing all previously accumulated information from the project build directory (P→E). They then collect information about any software components identified by command and add this information to the project build directory (E→P). In consequence, the only accumulated information in the project build directory at the end of the building phase is that arising from command. Once the building phase is finished:
  - codesonar build command is done.
  - codesonar analyze command continues by finalizing a CodeSonar project based on the accumulated information in the project build directory, then analyzing the project (P→A).
If command fails, or succeeds but does not identify any software components, behavior depends on whether or not -clean is specified.
- codesonar build command and codesonar analyze command finish without removing (or adding) accumulated project information.
- codesonar build -clean command and codesonar analyze -clean command both remove all accumulated project information, then finish (P→E).
If there is no command (codesonar analyze only):
- codesonar analyze finalizes a CodeSonar project based on the existing contents of the project build directory, then analyzes the project (P→A).
- codesonar analyze -clean removes all accumulated project information, then finishes (P→E)..

build/analyze on a finalized, analyzed project (A)

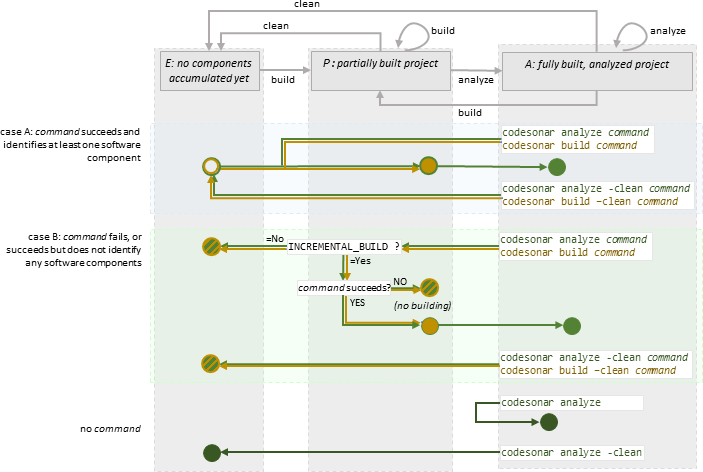

The following diagram depicts the effects of codesonar build and codesonar analyze commands invoked when a CodeSonar project is in fully built, analyzed state.
Command line elements that do not affect the transitions shown in the diagram are omitted for clarity.

transition diagram (description follows in text): build/analyze command from analyzed project state

If command is successful, behavior depends on whether or not -clean is specified.
- codesonar build command and codesonar analyze command both start by collecting information about any software components identified by command and adding this information to the existing contents of the project build directory. The project build directory is therefore now back in partially built state (A→P). Once the building phase is finished:
  - codesonar build command is done.
  - codesonar analyze command continues by finalizing a CodeSonar project based on the accumulated information in the project build directory, then analyzing the project (P→A).
- codesonar build -clean command and codesonar analyze -clean command both start by removing all previously accumulated information from the project build directory (A→E). They then collect information about any software components identified by command and add this information to the project build directory (E→P). In consequence, the only accumulated components in the project build directory at the end of the building phase are those arising from command. Once the building phase is finished:
  - codesonar build command is done.
  - codesonar analyze command continues by finalizing a CodeSonar project based on the accumulated information in the project build directory, then analyzing the project (P→A).
If command fails, or succeeds but does not identify any software components, behavior depends on whether or not -clean is specified. When -clean is not specified, behavior also depends on the setting of the INCREMENTAL_BUILD configuration parameter.
- codesonar build command and codesonar analyze command behave as follows.
  - INCREMENTAL_BUILD=No : codesonar build command and codesonar analyze command both remove all accumulated project information, then finish (A→E).
  - INCREMENTAL_BUILD=Yes and command fails: codesonar build command and codesonar analyze command both finish without removing (or adding) accumulated project information, but the project is now in partially built state (A→P). codesonar build command is now done; codesonar build command finalizes a CodeSonar project based on the existing contents of the project build directory, then analyzes the project (P→A).
  - INCREMENTAL_BUILD=Yes and command succeeds without identifying any tranlation units: codesonar build command and codesonar analyze command both finish without removing (or adding) accumulated project information, but the project is now in partially built state (A→P).
- codesonar build -clean command and codesonar analyze -clean command both remove all accumulated project information, then finish (A→E).
If there is no command (codesonar analyze only):
- codesonar analyze reanalyzes the finalized project (A→A).
- codesonar analyze -clean removes all accumulated project information, then finishes (A→E).
