CodeSonar and the Clang Static Analyzer: Examples

This section provides examples of using the CodeSonar SARIF importer to incorporate results found by the Clang Static Analyzer.

Important: If Clang Static Analyzer is not already available on your local system, you will need to install and configure version 8.0 or later.

Windows Note: Some Windows users have reported that they cannot run the scan-build command and obtain SARIF output even independently of CodeSonar. If you are a Windows user having difficulties completing the exercise below and the general troubleshooting advice does not help you resolve them, you may need to file a Clang Static Analyzer bug report.

Sample Files

We have provided the following files for these examples.

C/C++ Analysis Example Files file1.cpp, file2.cpp, main.cpp,
header1.h, header2.h, header3.h		 Short C++ source files for the project to be analyzed.
Makefile A Makefile for the C/C++ project.
Objective-C Analysis Example Files scratch.m Objective-C source file.

Note

In this section (and throughout this manual), $CSONAR indicates the CodeSonar installation directory.

C/C++ Analysis Example

  1. If the Clang Static Analyzer is not installed on your system, install and configure version 8.0 or later now.
  2. Choose a name for the new CodeSonar project. In the remainder of these instructions, we will call it SarifTest.
  3. Create a working directory. The working directory location must be outside both your CodeSonar installation directory and your hub directory.
  4. Save (right-click on the link and select Save Target As... or equivalent) file1.cpp, file2.cpp, main.cpp, and Makefile to your working directory.
  5. Create a directory named include within the working directory. Save header1.h, header2.h, and header3.h to the include subdirectory.
  6. cd to the working directory.
  7. Run the CodeSonar build with a command based on the Clang Static Analyzer scan-build command. In many cases, the following will be sufficient.
    codesonar build SarifTest /path/to/clang/bin/scan-build -sarif -enable-checker core make
    This will execute CodeSonar, the Clang Static Analyzer, and build the user's project from the Makefile.
  8. Run the following command to have CodeSonar load the SARIF results that were produced by the Clang Static Analyzer into the CodeSonar hub for the SarifTest project.
    codesonar analyze SarifTest codesonar import_sarif.py /tmp/scan-build-datetime/*
    Where CodeSonar will analyze the SarifTest project and import the SARIF results.
  9. The findings from both static analyzers will be present in the hub for the SarifTest project. Open the hub GUI Analysis page for the analysis and go on to Analysis Results.

Analysis Results

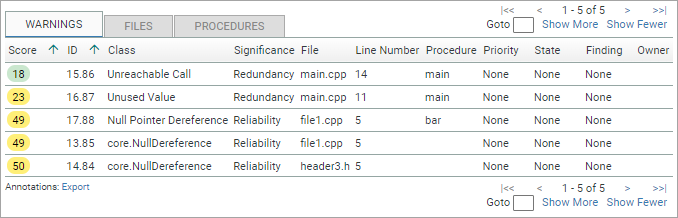

The Analysis: Warnings tab will list five warnings, as shown in the following screenshot fragment.

Screenshot fragment: Analysis:Warnings warning table

  1. Click the "core.NullDereference" that occurs in header3.h to navigate to the Warning Report.
  2. Inspect the warning report which describes a null pointer dereference reported by the Clang Static Analyzer.

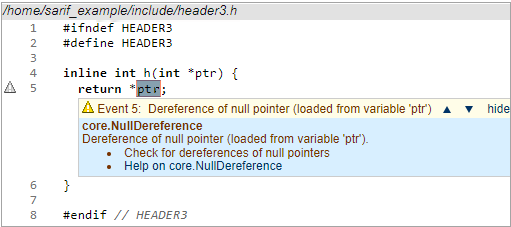

    Screenshot fragment: Warning Report showing code excerpt and warning description box

Objective-C Analysis Example

  1. If the Clang Static Analyzer is not installed on your system, install and configure version 8.0 or later now.
  2. Choose a name for the new CodeSonar project. In the remainder of these instructions, we will call it ExampleTest.
  3. Create a working directory. The working directory location must be outside both your CodeSonar installation directory and your hub directory.
  4. Save (right-click on the link and select Save Target As... or equivalent) scratch.m to your working directory.
  5. cd to the working directory.
  6. Run the Clang Static Analyzer and generate .sarif output.
    /path/to/clang/bin/scan-build -sarif -o . /path/to/clang/bin/clang-9 -ObjC -framework Foundation -isysroot `xcrun --show-sdk-path` -c scratch.m
  7. Run the following command to have CodeSonar load the SARIF results that were produced by the Clang Static Analyzer into the ExampleTest project, along with source file scratch.m.
    codesonar analyze ExampleTest [other codesonar options] \
    codesonar import_sarif.py /tmp/scan-build-datetime/* -include-sources scratch.m
    Where CodeSonar will finalize the ExampleTest project and send the results to the hub.
  8. Open the hub GUI Analysis page for the analysis and go on to Analysis Results.

Analysis Results

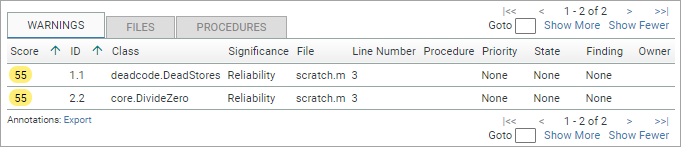

The Analysis: Warnings tab will list two warnings, as shown in the following screenshot fragment.

Screenshot fragment: Analysis:Warnings warning table

  1. Click the "core.DivideZero" that occurs in scratch.m to navigate to the Warning Report.
  2. Inspect the warning report which describes a division by zero warning reported by the Clang Static Analyzer.
    Screenshot fragment: Warning Report showing code excerpt and warning description box

Troubleshooting

If your Analysis page is not showing any results from the Clang Static Analyzer (that is, any warnings of class "core.NullDereference" or "core.DivideZero" in the examples above), check the following.

A. You have a sufficiently recent version of Clang Static Analyzer. The CodeSonar integration requires Clang Static Analyzer v8.0 or later.
B. The scan-build command runs correctly in isolation.
  1. Run make clean to ensure you will be fully rebuilding the project.
    make clean
  2. Run the scan-build command in isolation.
    /path/to/clang/bin/scan-build -sarif -enable-checker core make
  3. Check the following.
    • Did scan-build exit with success?
    • Did the scan-build output a line indicating where the analysis results are stored? It will look (something) like the following.
      scan-build: Analysis results (sarif files) deposited in /tmp/scan-build-datetime
    • Does directory /tmp/scan-build-datetime exist?
    • Does directory /tmp/scan-build-datetime contain one or more SARIF files?
    If the answer to any of these questions is "no", the problem is within scan-build and is independent of CodeSonar.
    1. Consult the scan-build documentation for help in diagnosing and resolving your problem.
    2. If you still cannot run scan-build in isolation, file a Clang Static Analyzer bug report.
C. Your codesonar analyze command line has no typos. Double-check to make sure your codesonar analyze command line contains all the required elements.

In particular, make sure you have specified the correct path to the directory where scan-build wrote its SARIF files. This will be different every time you run scan-build.
