Anonymous Usage Statistics

• Overview
• Enable/Disable Upload
• Information and Anonymization
• Inspecting Your Information
• Opt In/Out Examples

Overview

CodeSonar collects a range of anonymized statistics about usage and performance.

You can opt in or out of uploading the collected statistics to CodeSecure. If you opt in, the uploaded statistics are aggregated with all usage statistics collected from other sources.

Enable/Disable Upload

When you first install CodeSonar you will be asked to specify whether or not anonymous usage statistics should be uploaded to CodeSecure. At any point thereafter you can change your selection, as many times as you wish.

The collection of usage statistics is always active. If you have opted out of uploading the statistics to CodeSecure, they will be temporarily stored on your local system. This allows you to inspect them as needed; it also provides the option of sending manually-selected data to CodeSecure if it is ever required to resolve a question you have about CodeSonar usage or operation.

Enabling/Disabling at Installation

Opting Out/In at Any Time

If you change your mind about whether or not you want to submit usage statistics, you can opt in or out at any time.

There are several mechanisms available for opting in and out. CodeSonar checks each of these in turn in order to determine whether or not to submit statistics to CodeSecure. Once CodeSonar has made a concrete determination ("enabled" or "disabled"), it stops checking.

Information and Anonymization

To protect your privacy, only the following information is collected.

• Operating system (including version).
• Compiler basename.
• Numeric information about occurrences of CodeSonar events from a fixed, predefined set.
  Note that this means measures like "number of events" and "duration of an event". It does not include any private information from within an event, numerical or otherwise.

In particular, the following are NOT collected.

• Company names.
• User names.
• IP addresses.
• Absolute paths.
• Any code whatsoever.
• Unique identifiers for coordinating multiple submissions from the same site.
• Warning notes.
• Names of custom warning classes (that is, any warning classes not shipped with CodeSonar).
• Custom values for warning Priority, Finding and State.
• Misspelled or misplaced command line flags.
• Any information unrelated to CodeSonar operations.

Inspecting Your Information

If you would like to inspect the collected information before enabling submission to CodeSecure, or are simply interested in seeing what the collected data looks like, do the following.

1. Disable upload of anonymous statistics, if it is not not already disabled.
2. Spend some time performing your regular CodeSonar tasks so that some statistics are generated. For example:
   • Start a hub.
   • Perform an analysis.
   • Visit some pages in the hub GUI.
3. Run the following command.

   Windows	%CSONAR%\gtr\bin\telemetry_force_submissions.exe
   Otherwise	$CSONAR/gtr/bin/telemetry_force_submissions

4. Inspect the output from telemetry_force_submissions.
   1. Observe that the output states that result submission is currently disabled.
   2. Take note of the reported file name: this is where your statistics are stored.
5. Open the file whose name you obtained in the previous step to examine the recorded statistics.

Sample Data File

File aggregated1.csv contains real CodeSonar data collected at CodeSecure. If you inspect it you will notice the following.

• Line 1 contains column headers.

  Product,Version,Host Platform,OS,Metric,Time,Mean,Variance,Count,Min,Low Quartile,Median,High Quartile,Max,Sum


• Line 2 describes the settings of configuration parameter MAX_PERCENT_F_CHARACTERS across 10 instances of codesonar: this is the CodeSonar analysis process, running in either analysis mode or daemon mode. The MAX_PERCENT_F_CHARACTERS parameter was set to 309 every time (Count=10, Min=309, Max=309).
  Because this happens to be the first statistic reported for its <Product,Version,Host Platform,OS> tuple, all of those values are included as well. Lines 3 through 804 start with 4 empty fields: this should be read as indicating that Product, Version, Host Platform, and OS are the same as those for the previous line.

  codesonar,codesonar-5.3p0,x86_64-pc-linux-gnu,Linux:4.15.0-76-generic:#86-Ubuntu SMP Fri Jan 17 17:24:28 UTC 2020:x86_64:glibc2.27,cso.analysis.preferences.MAX_PERCENT_F_CHARACTERS.as_integer,85953,309,0,10,309,309,309,309,309,3090


• Line 3 specifies that the Unused Parameter warning class was enabled for zero (0) of six analyses (or equivalently, that it was disabled for all of them).

  ,,,,cso.analysis.warningclasses.Unused Parameter.enabled,,0,0,6,0,0,0,0,0,0


• Line 6 specifies that zero (0) Free Non-Heap Variable warnings were reported across six analyses.

  ,,,,cso.analysis.warningclasses.Free Non-Heap Variable.count,,0,0,6,0,0,0,0,0,0


• Line 7 contains timing statistics for the "Transforming PDG_VERTEX_SETs" analysis phase (a subphase of Linking) across ten analyses. The mean time spent in this phase was 0.8 milliseconds.

  ,,,,cso.analysis.phases.Transforming PDG_VERTEX_SETs.elapsed.milliseconds,,0.8,2.56,10,0,0,0.133333333,0.666666667,4,8


• Line 22 specifies that zero (0) lines of Java were analyzed across ten analyses.

  ,,,,cso.analysis.langs.java.lines_with_code,,0,0,10,0,0,0,0,0,0


• Line 241 specifies that there were zero (0) C++ parse errors across ten analyses.

  ,,,,cso.analysis.langs.C++.parse_errors,,0,0,10,0,0,0,0,0,0


• Line 805 reports that zero (0) parse errors were encountered across six invocations of the C/C++ front end (Product=cprocess) for C compilation units compiled using gcc 7.4.0.
  Lines 106-812 report other parse error and success statistics for the various compiler/language combinations encountered during the statistics collection period.

  cprocess,codesonar-5.3p0,x86_64-pc-linux-gnu,Linux:4.15.0-76-generic:#86-Ubuntu SMP Fri Jan 17 17:24:28 UTC 2020:x86_64:glibc2.27,cso.front_ends.cprocess.TU.C.gcc.gcc.gcc.(7.4.0).parse_errors,,0,0,6,0,0,0,0,0,0


• Line 814 begins a section of statistics about the hub process (Product=cshub). The first statistic is that requests for pages with URL scheme ^/spawncs/(?P<analysis_id>[^/]+)/entry/$ had HTTP response 200 ("OK") 1584 times. Requests with this URL scheme are part of the submission process for analysis logs.
  Note that no information about hub location is included.

  cshub,codesonar-5.3p0,x86_64-pc-linux-gnu,Linux:4.15.0-76-generic:#86-Ubuntu SMP Fri Jan 17 17:24:28 UTC 2020:x86_64:glibc2.27,cso.hub.responses.^/spawncs/(?P<analysis_id>[^/]+)/entry/$.code.200 OK.count,,1,0,1584,1,1,1,1,1,1584


• Line 815 reports that the size of standard hub database table cs_failedlogin was checked four (4) times and was 81920 bytes each time.

  ,,,,cso.hub.db.tables.cs_failedlogin.bytes,,81920,0,4,81920,81920,81920,81920,81920,327680


• Line 816 reports that the C/C++ Normalized AST Classes: Hierarchical Index manual page was requested one (1) time with a response size of 211 bytes. Other statistics associated with serving this manual page are at lines 875, 1109, and 1123.

  ,,,,cso.hub.responses./install/codesonar/doc/html/C_Module/API/AST/csaf_c_normalized_tree.html.size,,211,0,1,211,211,211,211,211,211


• Line 837 reports that there were 14 requests for an Undefined Functions Report GUI page, with a request size of 36 bytes each time (for a total of 36×14=504 bytes expended across all requests). Other statistics associated with serving this type of GUI page are at lines 881, 1290, and 1318. Note that these statistics are not broken down by analysis or by format.

  ,,,,cso.hub.requests.^/undef_funcs/(?P<analysis_id>[0-9]+)[.](?P<format>html|txt|csv|xml)$.size,,36,0,14,36,36,36,36,36,504


Opt In/Out Examples

• Example 1: Disable result submission at installation time for all users of a CodeSonar installation
• Example 2: Disable result submission after initial setup for all users of a CodeSonar installation
• Example 3: Disable result submission for all users on a non-Windows system
• Example 4: More complex enabling/disabling policy on a non-Windows system
• Example 5: Disable (or enable) result submission using Windows Group Policy

Example 1: Disable result submission at installation time for all users of a CodeSonar installation

Note that in both these cases, the result is that CodeSonar creates file $CSONAR/TELEMETRY_DISABLED.

Once this has been done, CodeSonar will do the following every time it needs to determine whether to submit statistics.

Example 2: Disable result submission after initial setup for all users of a CodeSonar installation

The process is the same for both Windows and non-Windows systems.

1. Sign in as the user who performed the installation.
2. Remove file $CSONAR/TELEMETRY_ENABLED, if it exists.
3. Create new, empty file $CSONAR/TELEMETRY_DISABLED.

Once this has been done, CodeSonar will perform the same checking procedure as in Example 1 (and with the same results) every time it needs to determine whether to submit statistics.

Example 3: Disable result submission for all users on a non-Windows system

To disable result submission for all users on a non-Windows system with one or more CodeSonar installations, a system administrator should create system user gt_telemetry_disabled_user.

To deploy the setting organization-wide, the user gt_telemetry_disabled_user should be created on every machine within the organization. For example, if the organization uses LDAP or NIS to manage users, then the user should be created on the LDAP or NIS server.

Once this has been done, CodeSonar will do the following every time it needs to determine whether to submit statistics:

1. Check : does system user gt_telemetry_disabled_user exist?
   (As noted in the table above, this is the first feature that CodeSonar checks for on non-Windows systems.)
   →YES, so CodeSonar concludes that submission is disabled.

Example 4: More complex enabling/disabling policy on a non-Windows system

Suppose you have the following sets of users.

Then do the following.

1. Ensure that system users gt_telemetry_disabled_user and gt_telemetry_enabled_user do not exist.
   If either or both exist, the remaining steps will have no effect.
2. Create group gt_telemetry_disabled. Add the users in set A to this group. Do not add any other users to the group.
3. Create group gt_telemetry_enabled. Add the users in set B to this group. Do not add any other users to the group.
4. Manage submission for set C as follows.
   • If you currently want to submit statistics, make sure that file /etc/GT_TELEMETRY_ENABLED exists and file /etc/GT_TELEMETRY_DISABLED does not exist.
   • If you don't currently want to submit statistics, make sure that file /etc/GT_TELEMETRY_DISABLED exists and file /etc/GT_TELEMETRY_ENABLED does not exist.

Once this has been done, CodeSonar will do the following every time it needs to determine whether to submit statistics:

1. Check: does system user gt_telemetry_disabled_user exist?
   →NO, so CodeSonar goes on to the next check.
2. Check: does system user gt_telemetry_enabled_user exist?
   →NO, so CodeSonar goes on to the next check.
3. Check: is the current user is a member of group gt_telemetry_disabled?.
   → YES for users in set A, NO for users in sets B and C.
   → For users in set A, CodeSonar concludes that submission is disabled. For users in sets B and C, it goes on to the next check.
4. Check: is the current user is a member of group gt_telemetry_enabled?
   → YES for users in set B, NO for users in set C.
   → For users in set B, CodeSonar concludes that submission is enabled. For users in set C, it goes on to the next check.
5. Check: does file /etc/GT_TELEMETRY_DISABLED exist?
   → If YES, CodeSonar concludes that submission is disabled and statistics are not submitted for users in set C. If NO, it goes on to the next check.
6. Check: does file /etc/GT_TELEMETRY_ENABLED exist?
   → If CodeSonar has reached this point the answer must be YES, so CodeSonar concludes that submission is enabled and statistics are submitted for users in set C.

Whenever you add a new user, decide whether they are in set A, set B, or set C.

• If they are in set A, add them to group gt_telemetry_disabled (and do not add them to gt_telemetry_enabled).
• If they are in set B, add them to group gt_telemetry_enabled (and do not add them to gt_telemetry_disabled).
• If they are in set C, do not add them to either group.

Example 5: Disable (or enable) result submission using Windows Group Policy

A Microsoft Windows System Administrator can use Windows Group Policy to enable or disable submission of anonymous statistics for a large user base. The following instructions describe the process for disabling submission on Windows Server 2016.

• The process for enabling submission is almost exactly the same, except that the Registry value for "Value data" will be 1 (not 0).
• Earlier versions of Windows Server, starting with 2012, should follow the same workflow.

Note that this approach will override any local configurations of existing CodeSonar installations.

1. Hold down the Windows key and press R.
   A Run dialog will open.
2. Enter the following command in the Open field of the Run dialog, and click OK.
   gpmc.msc
   The Group Policy Management Console will open.
3. In the panel at the left of the console, create a new Group Policy Object (GPO) as follows.
   1. Expand Forest > Domains.
   2. Under Domains, select the Organizational Unit (OU) you want to use and expand it.
   3. Under your expanded OU, right-click Group Policy Objects and select New from the menu that pops up.
      The New GPO dialog will open.
   4. In the Name field, enter a meaningful name for your new GPO, such as "Disable CodeSonar Telemetry".
   5. Click OK.
   Your new GPO will now be listed under Group Policy Objects.
4. Right click the GPO you just created and select Edit from the menu that pops up.
   The Group Policy Management Editor will open.

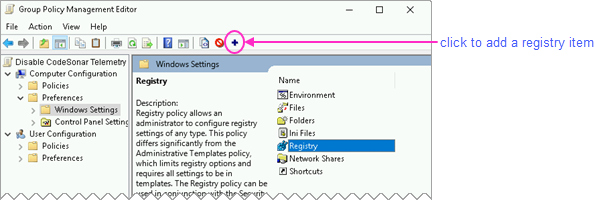

5. Open the Registry Properties dialog as follows.
   1. In the left panel, expand Computer Configuration > Preferences.
   2. Under Preferences, click Windows Settings to select it.
   3. In the main panel, click Registry to select it.
   4. Click the + icon in the menu bar.


   The Registry Properties dialog will open.

6. Enter the following information in the dialog.

   Action	Update (this will create the item if it doesn't exist)
   Hive	HKEY_LOCAL_MACHINE
   Key Path	SOFTWARE\CodeSecure
   Value name	TelemetryEnabled
   Value type	REG_DWORD
   Value data	00000000
   Base	either Hexadecimal or Decimal (00000000 has the same meaning in both)


7. Click OK.
8. Go back to the Group Policy Management Console.
9. Right-click your preferred OU and select Link an Existing GPO from the menu that pops up.
   The Select GPO dialog will open.
10. Click your new GPO to select it, then click OK.
    The Registry update will be propagated to the OU you selected in the previous step.

Once this has been done, CodeSonar will do the following every time it needs to determine whether to submit statistics:

1. Check: does registry value HKEY_LOCAL_MACHINE\SOFTWARE\CodeSecure\TelemetryEnabled exist and have type DWORD?
   →YES, so CodeSonar inspects the value of HKEY_LOCAL_MACHINE\SOFTWARE\CodeSecure\TelemetryEnabled.
   →It's 0, so CodeSonar concludes that submission is disabled and does not submit the recorded statistics.

Note: group policy is refreshed on a domain member computer:

• when it is restarted, and
• when a user logs in, and
• periodically (with configurable frequency), and
• when forced via the Group Policy Management Console (subject to a scheduling delay).
