Overview

CodeSonar offers three kinds of path checking: warning feasibility, taint propagation, and taint propagation in warning context.

Warning Feasibility Checking

When a CodeSonar user performs a search or exploration of the paths leading to a warning location, it inspects the program call graph and obtains a set of call graph paths that match the user's specifications. In some cases, one or more of these call graph paths may not correspond to an execution path that can actually occur in the program. In other cases, call graph paths may correspond to a valid execution path, but only under conditions that mean the warning does not occur.

Checking feasibility sets of call graph paths is computationally expensive, so is only performed on demand. In order to be tractable, the checking for each call graph path will limit the amount of effort spent looking for a corresponding feasible warning path: there is both a time limit and an upper bound on the number of paths that will be explored.

Taint Propagation Checking

Taint propagation checking is carried out with respect to the taint on a specific occurrence of a specific program element. Each function in a call graph path is inspected to determine whether it is a source or propagator (or neither) for the taint on the element of interest.

Note that the taint source may not occur directly on the call path. For example, suppose function f_source() is a taint source and returns a tainted value. If function main() calls f_source() and then passes the tainted value to another function f_sink(), we will not see the taint source if we check for taint propagation along the call path main()→f_sink().

Taint Propagation Checking In Warning Context

This is a hybrid of warning feasibility checking and taint propagation checking: each call path is inspected to determine whether both the warning and taint propagation can feasibly occur.

Availability

Path checking functionality is provided in the following page types.

Note that path checking is not available if the project is currently being analyzed.

Checking Paths

Path checking results are obtained and reported as follows.

Explore Callers

GUI Reference Link Explore Callers
Path Checking Type Depends on page mode:
Explore Callers Page Mode Path Checking Type
Ordinary no path checking
Taint taint propagation
Warning warning feasibility
Taint+Warning taint propagation checking in warning context
Invoking Path Checking Two options.
  • Click Check Paths to check every visible call graph path.
    CodeSonar will check the paths to the warning in breadth-first order.

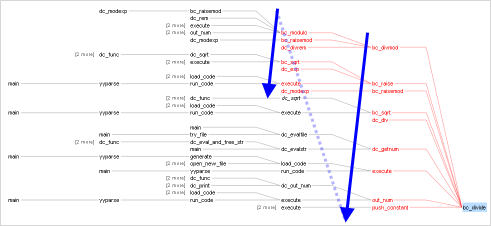

    diagram: breadth first checking

    To stop this process at any time, click Stop Checking. CodeSonar will finish checking its current path and then stop. If you click Check Paths again, the checking will resume where it left off.

  • Select Check This Path in the pop-up menu for a call tree node to check the path from that node.
    If CodeSonar is already performing a path check, it will finish checking its current path and then switch to checking the path you have chosen. Once this check is complete, CodeSonar will resume any remaining checking where it left off.
Results Display For a call graph path (...->)A->B->...->W, the color and format of node A corresponds to the path checking result for the path A->B->...->W.

The Explore Callers page also provides a color blind mode , in which path checking outcomes are displayed using a set of colors that can be distinguished by a viewer with deuteranomaly. Click enable color blind mode in the legend (top right of upper panel) to enable color blind mode; click disable color blind mode to disable it. The color mappings in color blind mode are as follows.

Path Checking Outcome Color in Color Blind Mode (otherwise)
Yes Pink (Red)
Unlikely Yellow (Yellow)
Not Sure Light Blue (Blue)
No Dark Blue (Green)

Extended Warning Report

GUI Reference Link Extended Warning Report
Path Checking Type warning feasibility
Invoking Path Checking Path checking is implicitly invoked by opening an Extended Warning Report for a particular path.
Results Display If a call graph path selected for viewing is determined to correspond to a feasible warning path then that path is highlighted in the Extended Warning Report code excerpt. Otherwise, CodeSonar prints a message above the excerpt explaining that a feasible warning path could not be found.

Search Callers

GUI Reference Link Search Callers
Path Checking Type Depends on page mode:
Search Callers Page Mode Path Checking Type
Ordinary no path checking
Taint taint propagation
Warning warning feasibility
Taint+Warning taint propagation checking in warning context
Invoking Path Checking Two options.
  • Click check paths to check all paths in the current page of the table.
    CodeSonar will step through the results, checking one path at a time and reporting the outcome in the Warning Detected or Taint Detected column (as appropriate) as it progresses.

    To stop this process at any time, click stop checking. CodeSonar will finish checking its current path and then stop. If you click check paths again, the checking will resume where it left off.

  • Click check now (on the Warning Detected or Taint Detected line) in an expanded path entry to check that path.
    If CodeSonar is already performing a path check, it will finish checking its current path and then switch to checking the path you have chosen. Once this check is complete, CodeSonar will resume any remaining checking where it left off.

    If the path has already been checked (and so a result is displayed), the link will be labeled check again.
Results Display Path checking results are shown in the Warning Detected and Taint Detected columns of the result table and on the Warning Detected and Taint Detected lines of each expanded path entry.

Path Checking Outcomes

The possible path checking outcomes depend on the kind of check.

Path Checking Outcomes: Warning Mode

Warning feasibility checking has four possible outcomes.

Warning Detected Color [*] Explanation
Yes Red The analysis determined that the warning does occur on that call path (before any limits were reached).
Unlikely Yellow The analysis explored the maximum permitted number of paths without finding a corresponding feasible warning path.
Not Sure Blue The time limit expired before the analysis could find a corresponding feasible warning path.
No Green The analysis determined that the warning does not occur on that call path (before any limits were reached).

[*] The Explore Callers page offers a color blind mode with a different set of color mappings.

In some cases CodeSonar may be unable to find a feasible warning path corresponding to some call graph path B->...W but then find a feasible warning path for A->...B->...W. For this reason, you may sometimes see paths with multiple color changes. In these cases, the color at the start of the path indicates the finding for the path as a whole. In particular, a path whose first link is colored red is a feasible warning path, even if the path contains links of other colors.

Path Checking Outcomes: Taint

Taint propagation checking has three possible outcomes.

Taint Propagation Status Format Explanation
Source Red Outline Taint propagates to the element of interest along this path; the taint source occurs directly on the path.
Propagates Red Underline Taint propagates to the element of interest along this path; the taint source does not occur on the path.
No - Taint does not propagate to the element of interest along this path.

Path Checking Outcomes: Taint+Warning Mode

Taint propagation checking in warning context has two possible outcomes.

Taint+Warning Propagation Status Color [*] Explanation
Yes Red Taint propagates to the element of interest along the call path path and the taint source occurs directly on the path and the analysis determined that the warning does occur on the call path (before any limits were reached).
Unlikely Yellow The analysis explored the maximum permitted number of paths without finding a corresponding feasible warning path with taint propagation and a taint source.
Not Sure Blue The time limit expired before the analysis could find a corresponding feasible warning path with taint propagation and a taint source.
No Green The analysis determined that the warning does not occur on the call path (before any limits were reached), or that taint does not propagate to the element of interest along the path, or that

[*] The Explore Callers page offers a color blind mode with an alternative set of color mappings.
